Astro X Series Pillow

Astro X Series Pillow CE Marked  Fire Pillows

Share page: email web page to a friend share web page on Facebook share web page on Twitter share web page on LinkedIn share web page on Pinterest



Astro X Series Pillow Product Image
Astro X Series Pillow Large
Small Fire Pillow
Sausage Fire Pillow
CE marked Fire Pillow
close image

Astro X Series Pillow Product Image
Astro X Series Pillow
Fire Pillow
CE Marked Fire Pillow
CE Marked Fire Pillow
Download any of the following data sheets:

Product Data Sheet

Safety Data Sheet

Install Video

DoP X Series Fire Pillows

CoC X Series Fire Pillow

X Series Fire Pillow TDS

UL Documentation

UL Assessment

Astro X Series Fire Pillows ETA

KEY: CE Marked Documents
CE Information DoP's are Declaration of Performance
CoC's are Certificate of Constancy of Performance
TDS's are Technical Data Sheet
ETA's are European Technical Assessment Sheet
UL Documentation are UL - EU Certificate


Product Features
  • CE Marked.
  • UL-EU Accreditation.
  • Cable trunking by UL assessment.
  • Classified in accordance with EN13501-2.
  • Fire Pillows tested with metallic pipes, cables, cable bunches, cable trays and cable ladders, please refer to the test certification.
  • Fire Resistance EN 1366-3 EI 120.
  • Fire Classification EN13501-2.
  • BS 7671-2008 Chapter 42 & 52 - Electrical Installations Fire Resistance.
  • Tested in accordance with EN10140-2: 2010 - Airborne Sound.
  • Tested in accordance with EN10126: 2000 Air Permeability.
  • CE products at Astroflame EU UL products at Astroflame EU
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 5 | Astro X Series Pillow | AFFPLX | Large

Telephone:

Email:

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

Description
CE ETA Label Astro X Series Pillow

X Series Fire Pillows are designed to provide an effective fire barrier, on a temporary or permanent basis, for services which are subject to frequent changes or replacement. The fire pillows consist of a waterproof glass cloth bag containing organic fillers and intumescent additives.

Pillows can be added, removed or rearranged in an aperture to accomodate to the needs of the situation and have been tested with metallic pipes, cables, cable bunches, cable trays and cable ladders.

Tested in block wall, concrete and masonry walls and concrete floors up to 1m² area and suitable for indoor and outdoor locations pillows remain flexible between –5°C to +40°C.

Three sizes of X Series fire pillow are available; please ensure that the correct pillow is installed to suit the opening size. See tables below.

*For specific details please refer to the test certification.

Properties & Specifications

The Astro X Series CE Pipe Collar range is available in standard sizes, to suit 55, 82, 110 and 160 mm diameter pipes, and includes intermediate and larger sizes.

Type Product Code Form Supplied Weight Supplied Qty Required Per m2

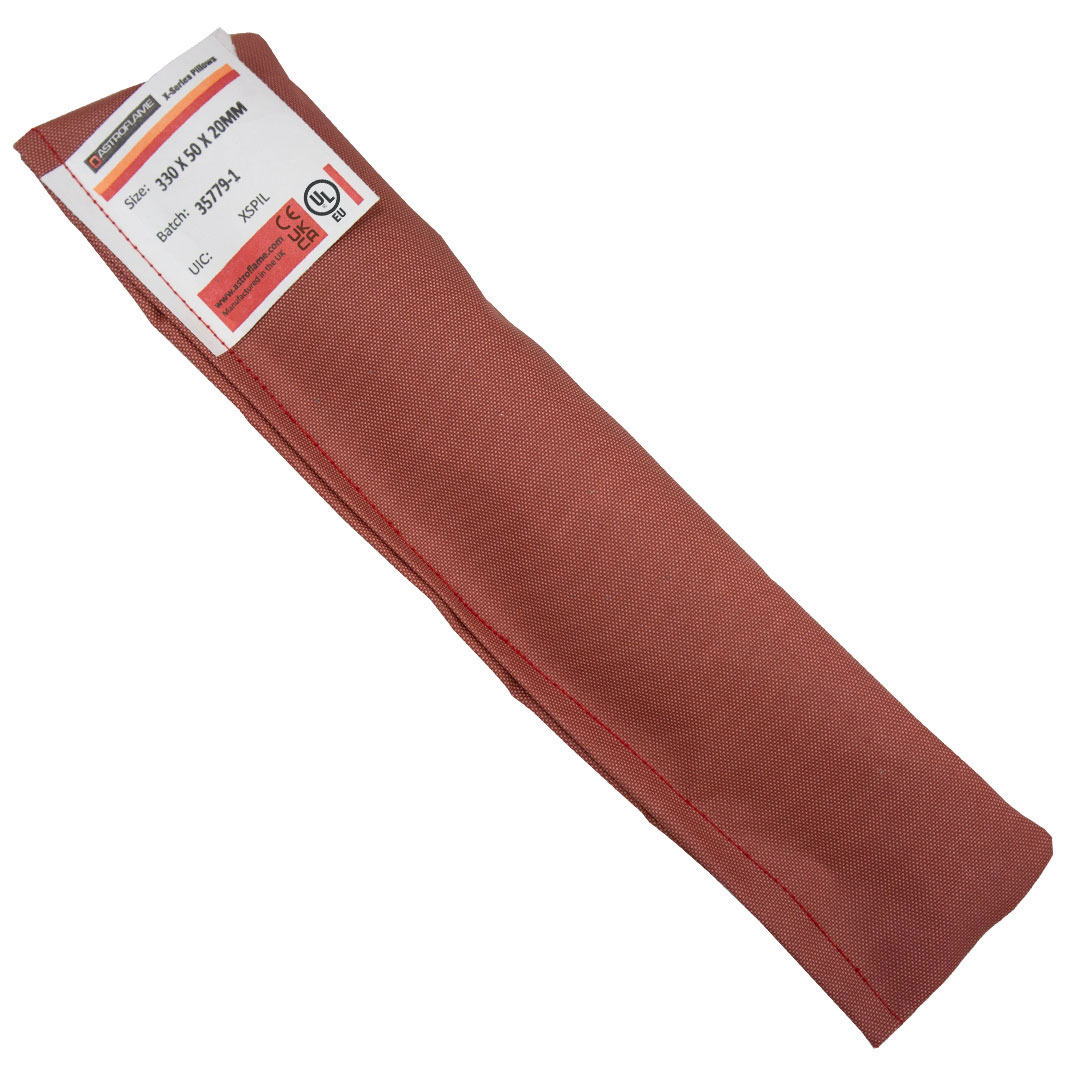

Sausage pillow
Sausage Size pillow
AFFPSASX 330x50x20mm 50gms As Required to fill small voids

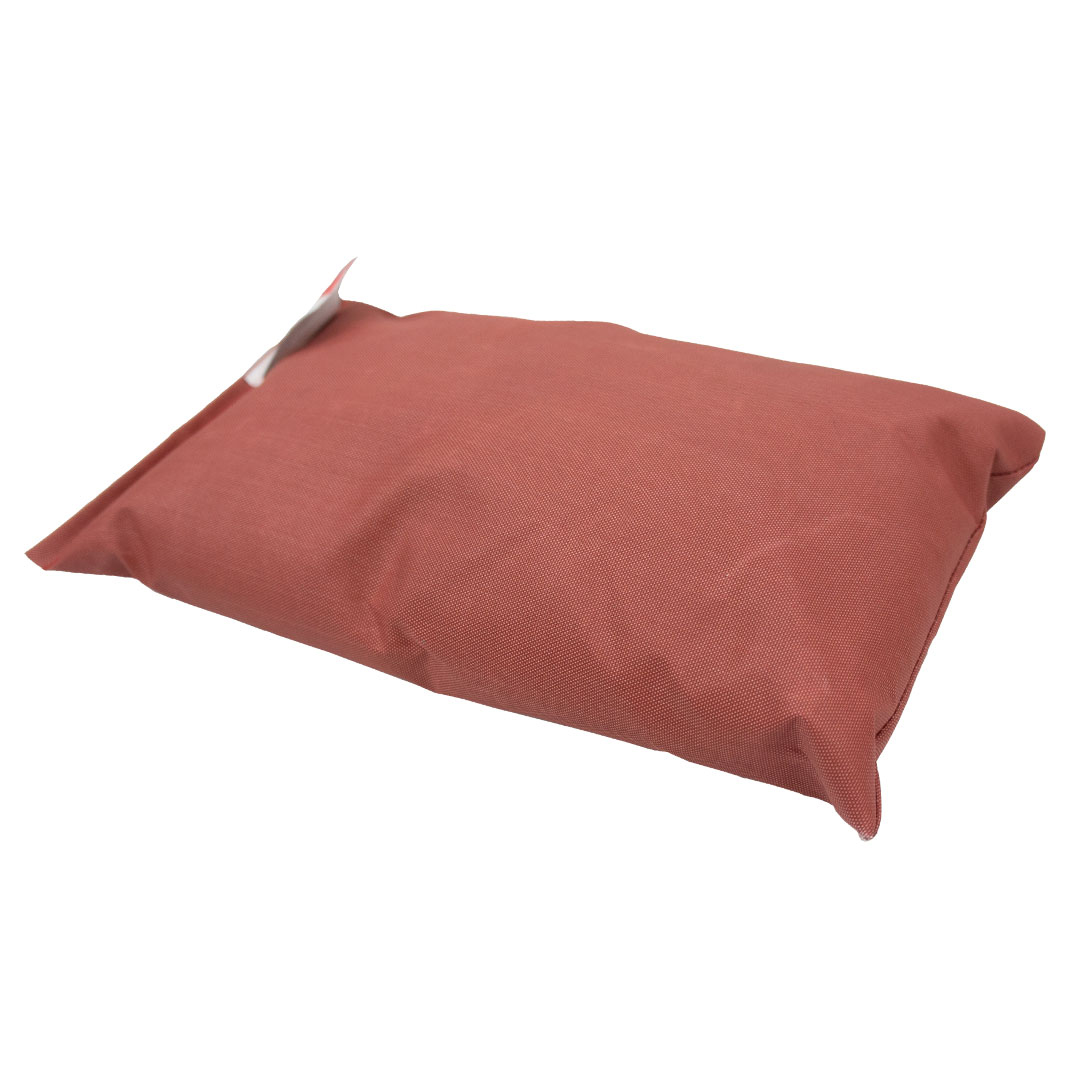

Small pillow
Small Size pillow
AFFPSX 330x200x25mm 185gms 180 in Wall or Floor

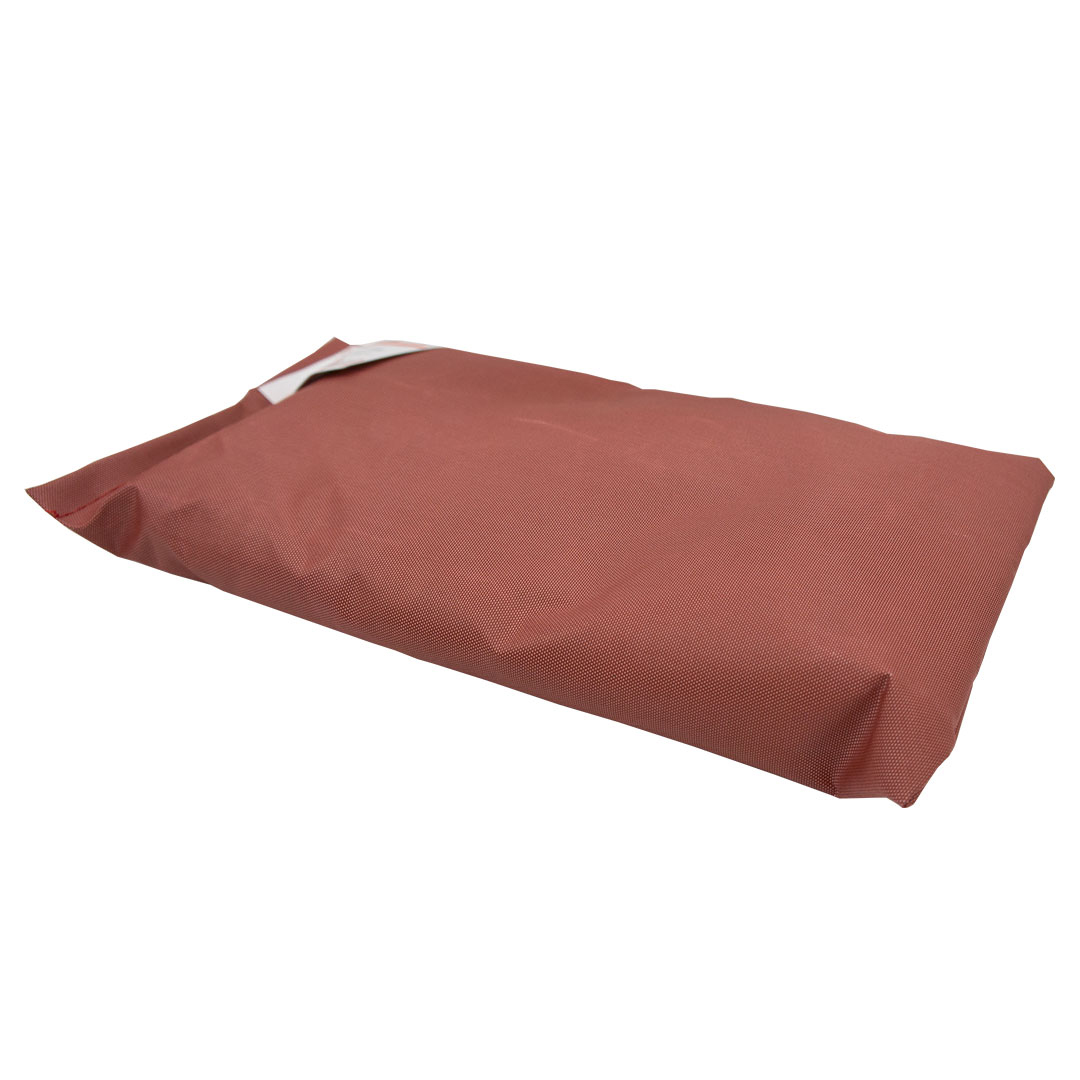

Large pillow
Large Size pillow
AFFPLX 330x200x45mm 385gms 113 in Wall or Floor

To estimate the number of fire pillow required please refer to the full Installation sheet, which has tables showing quantities required for a range of fire pillow and void sizes.

Product Availability

Available in 3 standard sizes.

Product Code Description Size
AFFPSASX Astro X Series Pillow Sausage 330x50x20mm
AFFPSX Astro X Series CE Pipe Collar 40mm 40mm
AFPC55X/CE Astro X Series Pillow Small 330x200x25mm
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 10 | Astro X Series Pillow | AFFPLX | Large

Telephone:

Email:

Once your order is received we will phone to confirm all details. For in-stock items orders received before 3pm (Monday-Friday) are dispatched for delivery on the following working day (Monday-Friday).

Installation

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com

Maintenance

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.

Competency

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes

Please refer to the ETA/UL-EU sheet for fields of application for this product. For further information on installation requirements please refer to the manufacturer of the services and the wall/floor specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall/floor specification on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
