Astro PFP FR Putty Seal

Astro PFP FR Putty Seal CE Marked  Fire Rated Putty Pads and Cords

Share page: Share and email to a friend Share on Facebook Share on Twitter Share on LinkedIn Share on Pinterest



Astro PFP FR Putty Seal Product Image
Astro PFP FR Putty Seal
Astro PFP FR Putty Seal External Product

Fire Rated Putty Pads and Cords Product Image
Fire Rated Putty Pads and Cords

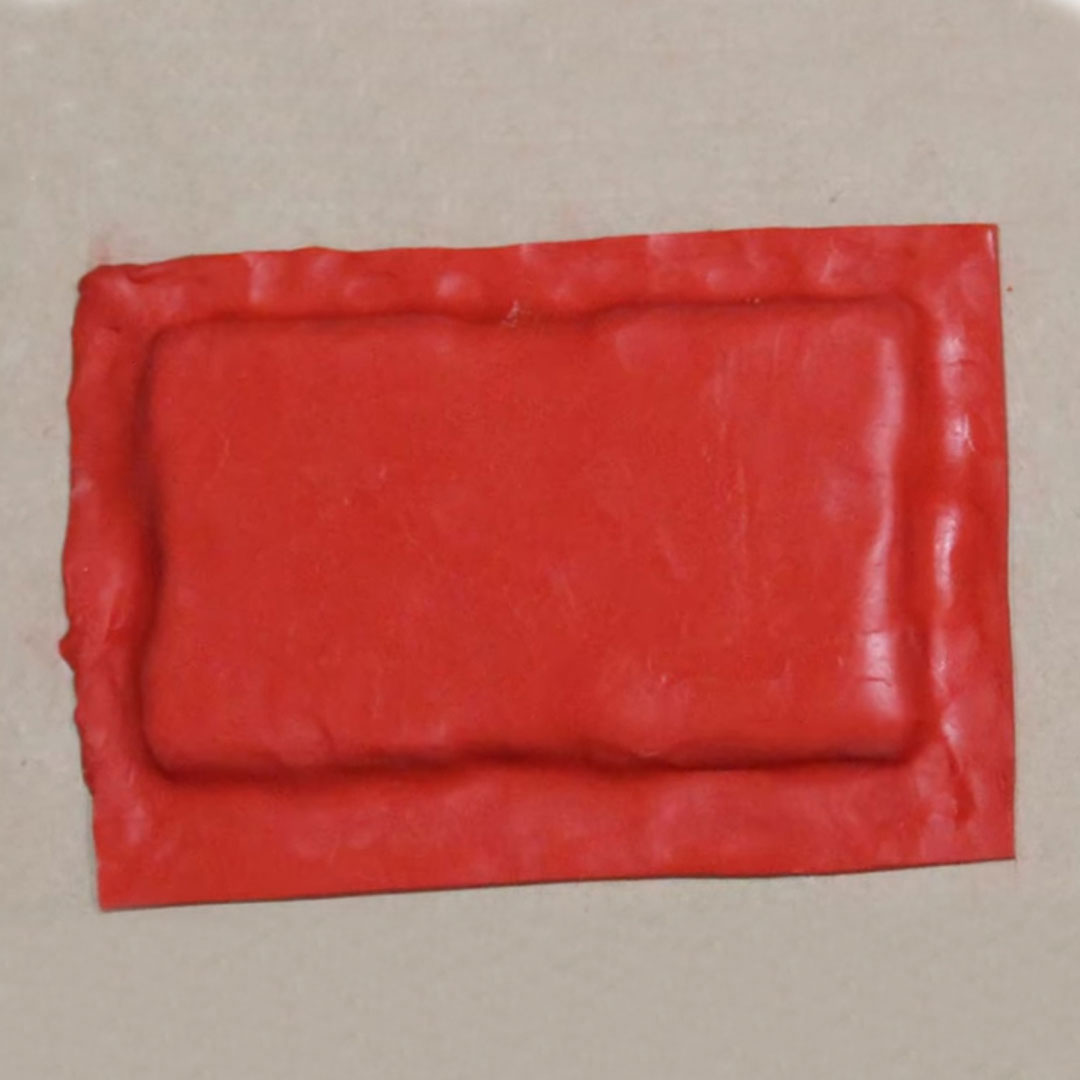

Fire Rated Putty Pads External
Download any of the following data sheets:

Product Data Sheet

Safety Data Sheet

Install Video

DoP Astro PFP FR Putty Seal

CoC Astro PFP FR Putty Seal

Astro PFP FR Putty Seal ETA

KEY: CE Marked Documents
CE Information DoP's are Declaration of Performance
CoC's are Certificate of Constancy of Performance
ETA's are European Technical Assessment Sheet


Product Features
  • Supplied in different shapes and forms for multiple application areas.
  • CE marked certified for UK and European markets.
  • Installation is very simple and quick.
  • Stops penetration of both cold and hot smoke.
  • Self-adhesive and very easy to apply without tools.
  • Unaffected by moisture; can be used in wet rooms.
  • Never hardens and ensures a tight fit.
  • Can be reshaped to other sizes if necessary.
  • Provides excellent sound insulation.
  • Environmentally and user friendly; contains no solvents.
  • Contains a low pressure intumescent for optimal fire protection.
  • Patented solution (Putty Cord).
  • 90 minutes fire resistance in 100mm and 130mm dry wall construction. Tested to EN 1366-3:2004 in conjunction with additional guidelines from BS:EN 1364-1.
  • Air pressure test up to 1000Pa (pass)
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 10 | Astro PFP FR Putty Pad Internal Single | AFPFPPPIS | 170x170mm

Telephone:

Fax:

Email:

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

Description
CE ETA Label Pipe Wraps UL

Astro PFP FR Putty seal is an easy to apply fire and sound rated sealant supplied as a non-setting putty. The putty is hand workable, reusable and re-serviceable due to its non-setting properties. The putty is manufactured and supplied in different shapes and forms for different applications.

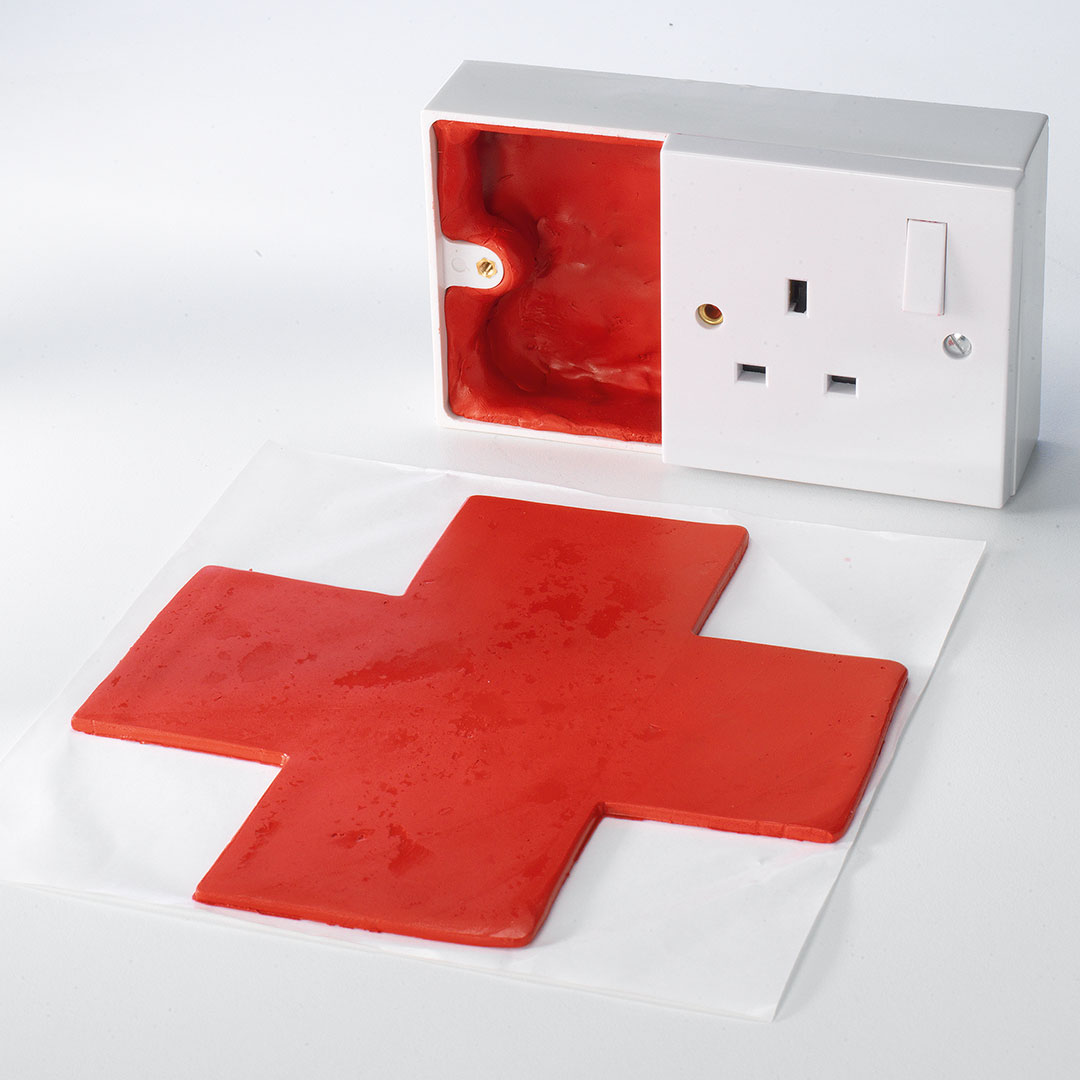

Putty Pads for sockets
When electrical sockets and switches are installed in dry lining partitions, the original fire rating of the partition is compromised. Fitting Putty Pads will reinstate the fire rating of the partition for up to 90 minutes (depending on the partition fire rating) preventing the passage of smoke, flames, sound and air through the electrical socket.

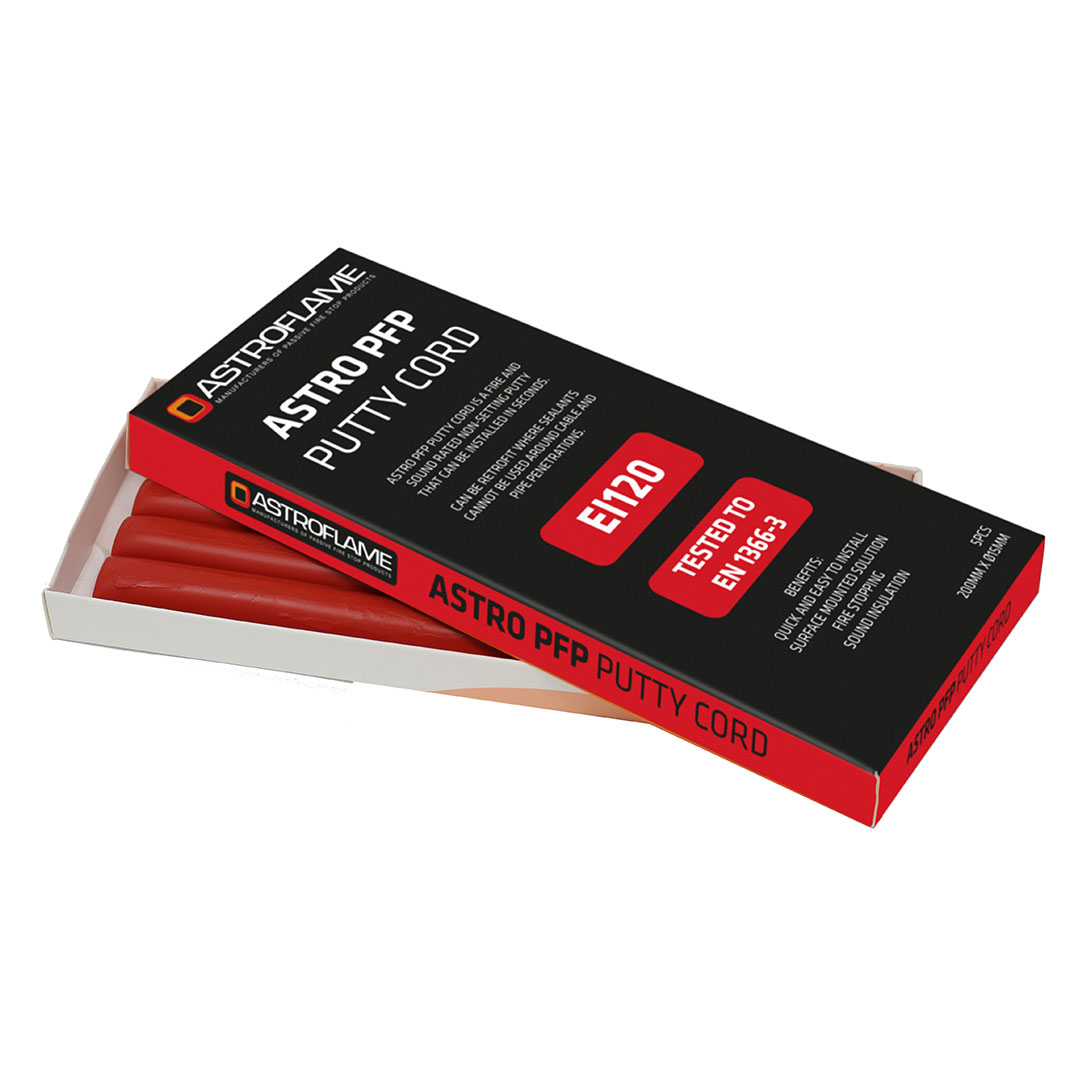

Putty Cords for fire sealing services
The putty chord is designed to seal small gaps (0-10mm wide) around service penetrations where it is difficult to use traditional intumescent sealant and backers in terms of access and maintaining correct depths of seal.

Putty Pads for water supply boxes
When tap water wall boxes are installed in dry lining partitions, the original fire rating of the partition is compromised. Fitting Putty Pads will will reinstate the fire rating of the partition for up to 90 minutes (depending on the partition fire rating) preventing the passage of smoke, flames, sound and air through the electrical socket.

Sound Insulation
Description Sound reduction
Putty Pads for sockets Rw 67 dB

Astro PFP FR Putty seal has been tested at BRE (UKAS accredited); according to EN ISO 140-3:1995. Single number quantities were calculated in accordance with EN ISO 717-1:1997. The test report is available upon request.

Emission Data (indoor air quality)
Compound Emission rate after 3 days Emission rate after 4 weeks
TVOC 190 μg/m3 12 μg/m3
TSVOC < 5 μg/m3 < 5 μg/m3
VOC w/o NIK 13 μg/m3 < 5 μg/m3
R Value 0.10 < 0.0099
Formaldehyde < 3 μg/m3 < 3 μg/m3
Acetaldehyde < 3 μg/m3 < 3 μg/m3
Carcinogenic < 1 μg/m3 < 1 μg/m3
Carcinogenic < 1 μg/m3 < 1 μg/m3

Regulation or Protocol Conclusion
French VOC Regulation A+
French CMR components Pass
AgBB Pass
Belgian Regulation Pass
Indoor Air Comfort® Pass
Indoor Air Comfort GOLD® Pass
EN 717-1§ E1
BREEAM International Compliant
BREEAM-NOR Pass
LEED v4 (outside U.S.) Compliant

Tested by Eurofins Product Testing; report available upon request.

Technical Data
Ready for use Silicone based putty
Durability/service Class Z2 : Intended for uses in internal conditions with humidity lower than 85% RH excluding temperatures below 0°C, without exposure to rain or UV
Density 1.55 g/ml
Application temperature +4 °C to +40 °C
Service temperature -70 °C to +120 °C
Storage Stored in temperatures between 5°C and 30°C
Colour Red
Form Pads or cords pre-shaped to its intended use
Packaging Carton boxes
Product Availability
Product Code Description Size
AFPFPPPIS Astro PFP FR Putty Pad Internal Single 170x170mm
AFPFPPPID Astro PFP FR Putty Pad Internal Double 230x170mm
AFPFPPPES Astro PFP FR Putty Pad External Single 180x130mm
AFPFPPPED Astro PFP FR Putty Pad External Double 230x230mm
AFPFPPCO Astro PFP FR Putty Cord 200xØ15mm
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 10 | Astro PFP FR Putty Pad Internal Single | AFPFPPPIS | 170x170mm

Telephone:

Fax:

Email:

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

Installation

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com

Maintenance

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.

Competency

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes

Please refer to the ETA sheet for fields of application for this product. For further information on installation requirements please refer to the socket box manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
