Astro PFP FR Boards

Astro PFP FR Boards  Fire Resistant Boards

Share page:

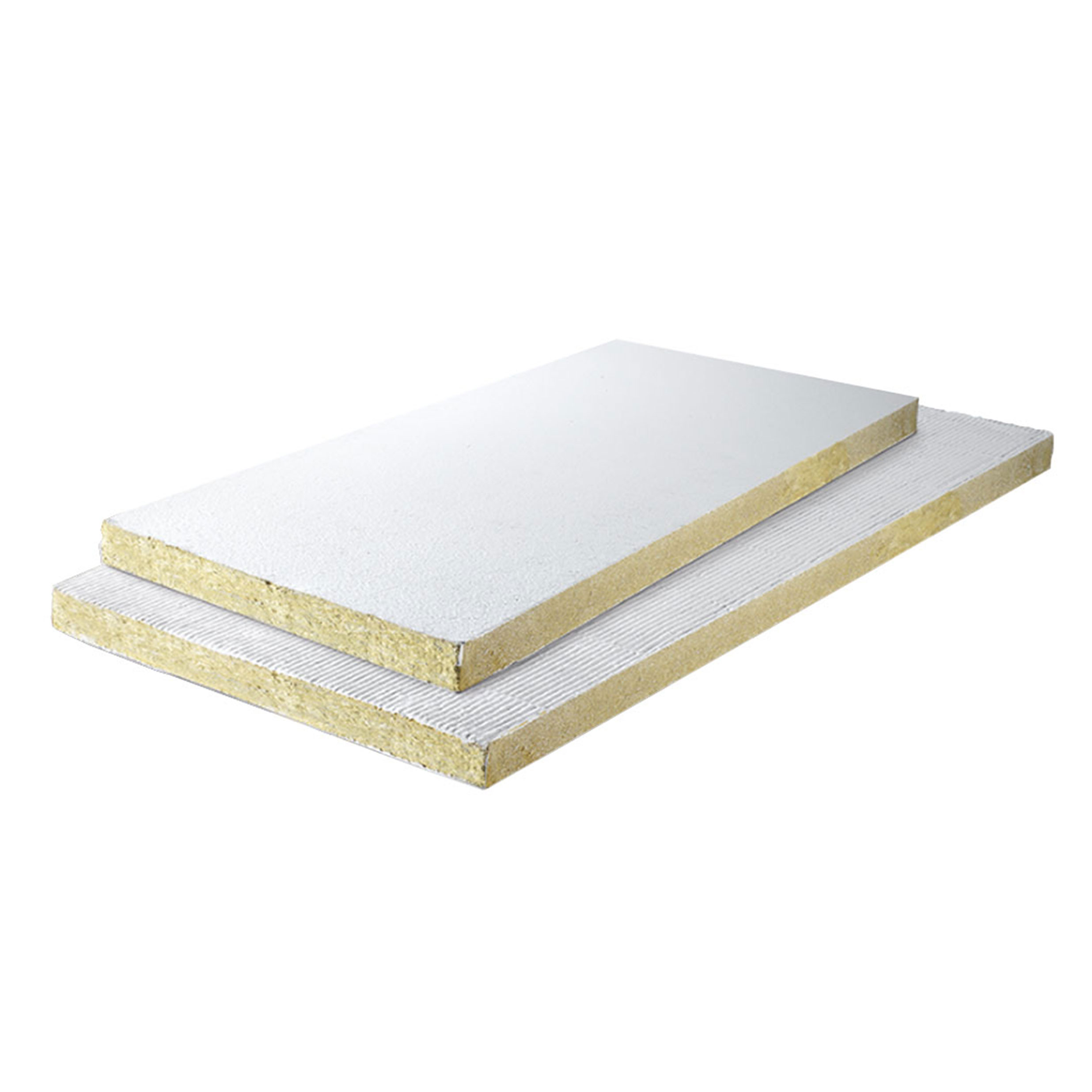

Astro PFP FR Boards Product Image

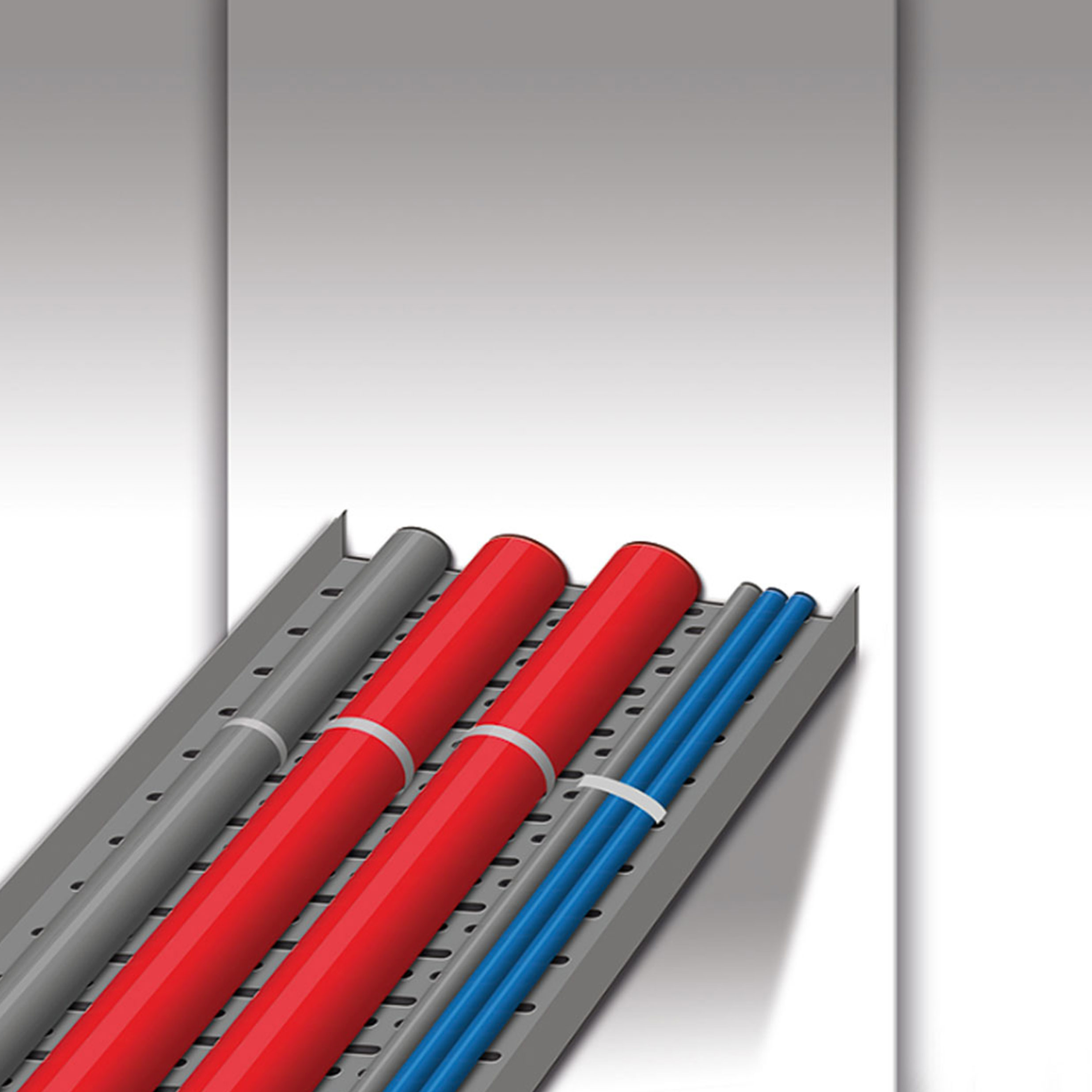

Astro PFP FR Boards in action
Astro PFP FR Boards visual

Intumescent Fire Rated Boards Product Image
Intumescent CE Marked Astro PFP FR Boards
Intumescent CE Marked Astro PFP FR Boards
Download any of the following data sheets:

Product Data Sheet

Safety Data Sheet

Install Video

DoP Astro PFP FR Boards

CoC Astro PFP FR Boards

Astro PFP FR Boards TDS

Astro PFP FR Boards ETA

KEY: CE Marked Documents
CE Information DoP's are Declaration of Performance
CoC's are Certificate of Constancy of Performance
TDS's are Technical Data Sheet
ETA European Technical Assessment Sheet


Product Features
  • Classified for all types of constructions with or without building service penetrations.
  • Simple and very quick to install.
  • Easy to retrofit additional building services after installation.
  • Permanently flexible - will accommodate movements during fire and smaller movements in the construction it has been fitted within.
  • May be used in unlimited lengths in walls with heights up to 1200 mm and in floors with widths up to 800 mm.
  • May be installed in gypsum walls with or without framing around the opening and can be patress fitted.
  • Halogen free with added fungicides.
  • Once fully cured, the board resists UV, humidity and frost.
  • Astro PFP FR Boards can be supplied with a smooth surface.
  • Precautions are required to be taken to prevent a person stepping onto a blank horizontal penetration seal.
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 25 | Astro PFP FR Boards | AFPFPB50 | 50 x 600 x 1200 mm

Telephone:

Fax:

Email:

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

Description
CE ETA Label for Astro PFP FR Boards

The Astro PFP FR Board is designed to prevent the spread of fire and smoke through openings in fire rated walls and floors where openings are formed to allow the installation of multiple building services. It will also maintain the acoustic design performance in fire rated walls and floors.

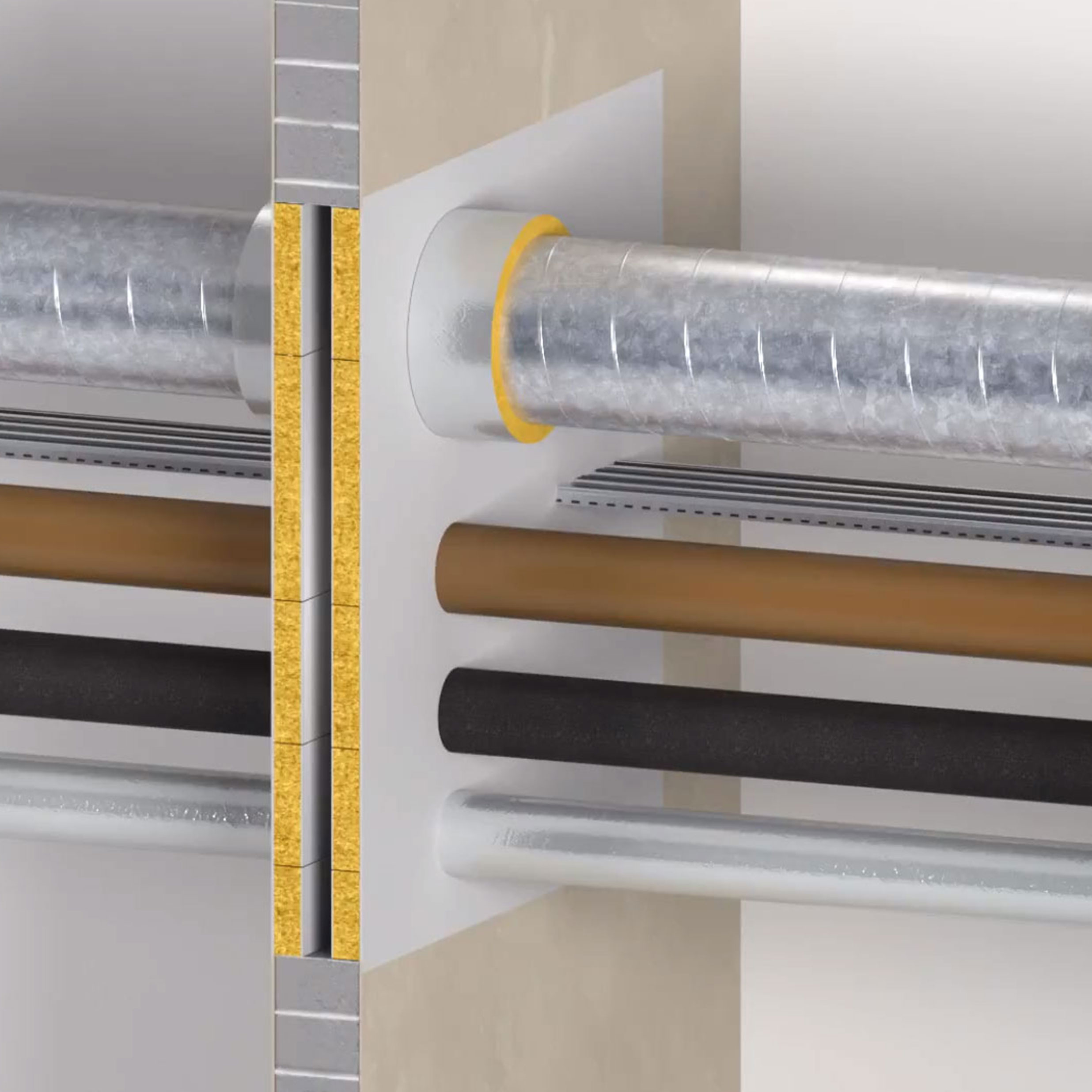

The Astro PFP FR Board consists of a high density stone wool core, over-coated with Astro PFP FR Coating. The top coating provides additional protection by significantly reducing the permeability of the stone wool core and preventing the passage of hot gases, thus reducing the temperature rise on the unexposed side and reducing heat conduction through the building services.

Astro PFP FR Board is available coated on one or two sides, depending on the seal design to provide the required fire resistance. On site, Astro PFP FR Board must be used together with Astro PFP Acrylic for sealing around building services, joints and edges of the FR Board and the surrounding construction.

Sound Insulation:
Description Sound Reduction
Single 50 or 60mm Astro PFP FR Board 2-S as linear seal Rw 55 dB
Single 50 or 60mm Astro PFP FR Board 2-S as large seal Rw 29 dB
Double 50 or 60mm Astro PFP FR Board 1-S or 2-S as large seal Rw 52 dB
50 or 60mm Astro PFP FR Board 1-S or 2-S with 50mm cavity, large seal Rw 53 dB

Astro PFP FR Board has been tested at BM Trada (UKAS accredited); according to EN ISO 10140-2:2010.

Resistance to Fire:
Construction Description Classification
Flexible walls comprise gypsum, masonry, aerated concrete or concrete Unlimited width by 1200mm high blank seal with double 50mm Astro PFP FR Board 1-S EI 120 (E 120)
Rigid walls comprise masonry, aerated concrete or concrete, within walls or between the head of walls and the soffit of floor slabs Unlimited width by 1200mm high blank seal with single 60mm Astro PFP FR Board 2-S EI 90 (E 240)
Unlimited width by 1200mm high blank seal with double 60mm Astro PFP FR Board 2-S EI 180 (E 240)
Up to 1200 mm by 1200 mm blank seal with double 60mm Astro PFP FR Board 2-S EI 240 (E 240)
Rigid floors comprise aerated concrete or concrete within floors or between floors and walls Up to 1200 mm by 600 mm blank seal with single 60mm Astro PFP FR Board 2-S EI 120 (E 240)
Up to 1200 mm by 600 mm blank seal with double 60mm Astro PFP FR Board 2-S EI 180 (E 240)
Up to 2400 mm by 1200 mm blank seal with single 60mm Astro PFP FR Board 2-S (see also below) EI 90 (E 120)
Unlimited length by 120mm wide linear seal with single 60mm Astro PFP FR Board 2-S EI 120 (E 240)

NB. Please read the Installation Instructions before usage.

Technical Data
Condition Ready for use, pre-coated boards
Density Board: 160 kg/m3 (150 - 170 kg/m3)
Coating: 1.3 - 1.4 kg/ltr
Durability Y1 - Intended for use at temperatures below 0°C with exposure to UV and humidity but no exposure to rain. Includes lower classes Y2, Z1 and Z2.
Flash point None
Non-sticky Max. 75 minutes (sealant)
Film forming Max. 25 minutes (sealant)
Totally hardened 3 to 5 days depending on thickness and temperature
Flexibility Medium, 12.5%
Thermal conduct. 0.038 W/mK
Storage May be stored for a long period of time. To be stored in temperatures between 5°C and 30°C
Compatibility Suitable for use with most materials, but should not be used In direct contact with bituminous materials
Limitations If the boards are to be used in permanently humid areas PFP FR Coating should be applied over the sealant
Temperature range -30°C to +80°C (when hardened)
Installation temp. +5°C to +50°C
Colour White surface, green core
PFP FR Acrylic: White: RAL 9002
Product Availability
Product Code Description Size
AFPFPB50 Astro PFP FR Boards 50 x 600 x 1200 mm
AFPFPB60 Astro PFP FR Boards 60 x 600 x 1200mm

30mm and 50mm boards only coated 1 sided also available P.O.A

To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 25 | Astro PFP FR Boards | AFPFPB50 | 50 x 600 x 1200 mm

Telephone:

Fax:

Email:

Once your order is received we will phone to confirm all details. For in-stock items orders received before 3pm (Monday-Friday) are dispatched for delivery on the following working day (Monday-Friday).

Installation

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on:

Telephone: +44 (0)1329 844 500

Email: sales@astroflame.com

Maintenance

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.

Competency

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:

Telephone: +44 (0)1329 844 500

Email: sales@astroflame.com
