High Strength Fire Mortar - Trade Name: ASTRO HS FM COMPOUND



CE Documents:

'DoP's are Declarators of Performance
'CoC's are 'Certificates of Constancy'

DoP Astro HS FM Compound

CoC Astro HS FM Compound

Astro HS FM Compound TDS

Product Images

Description

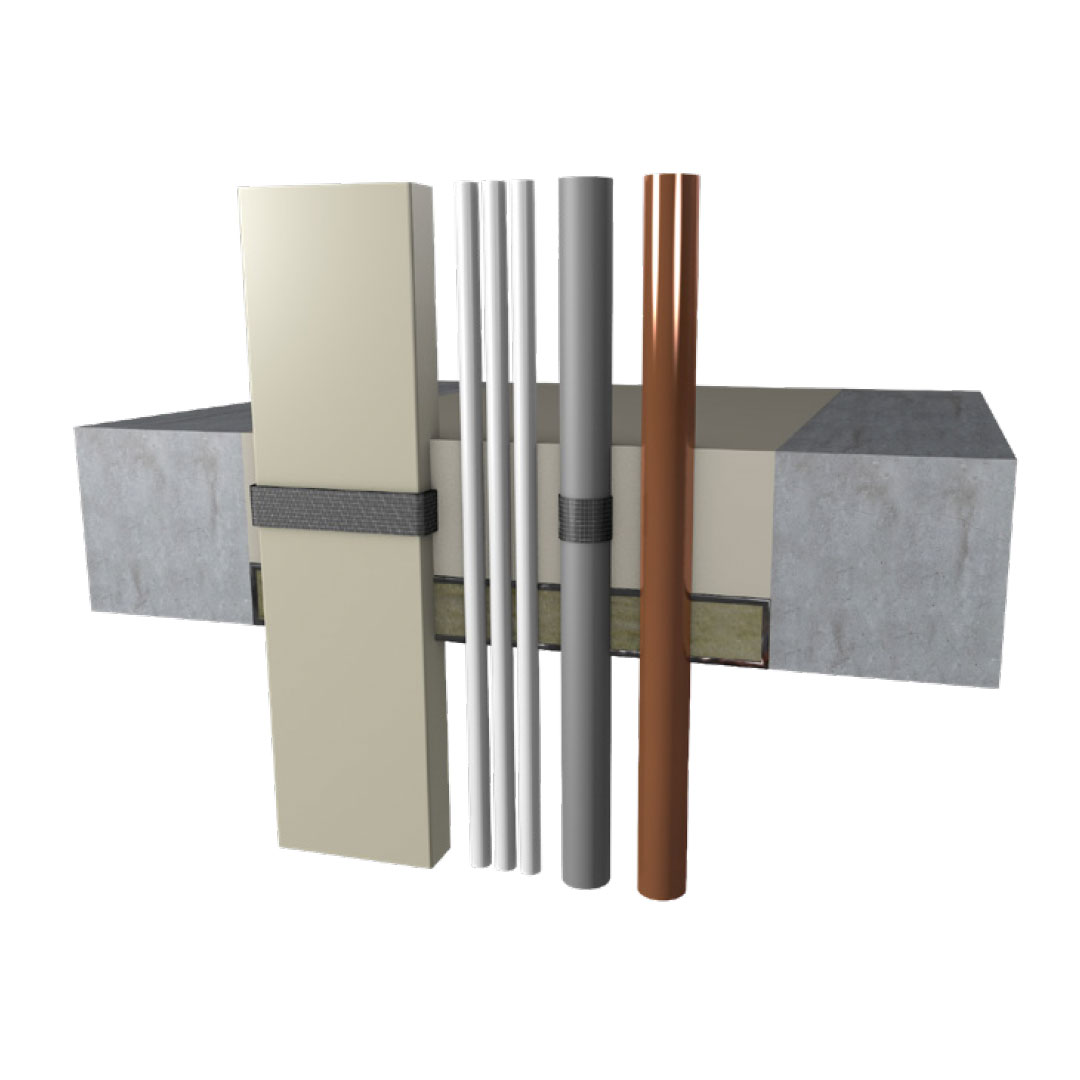

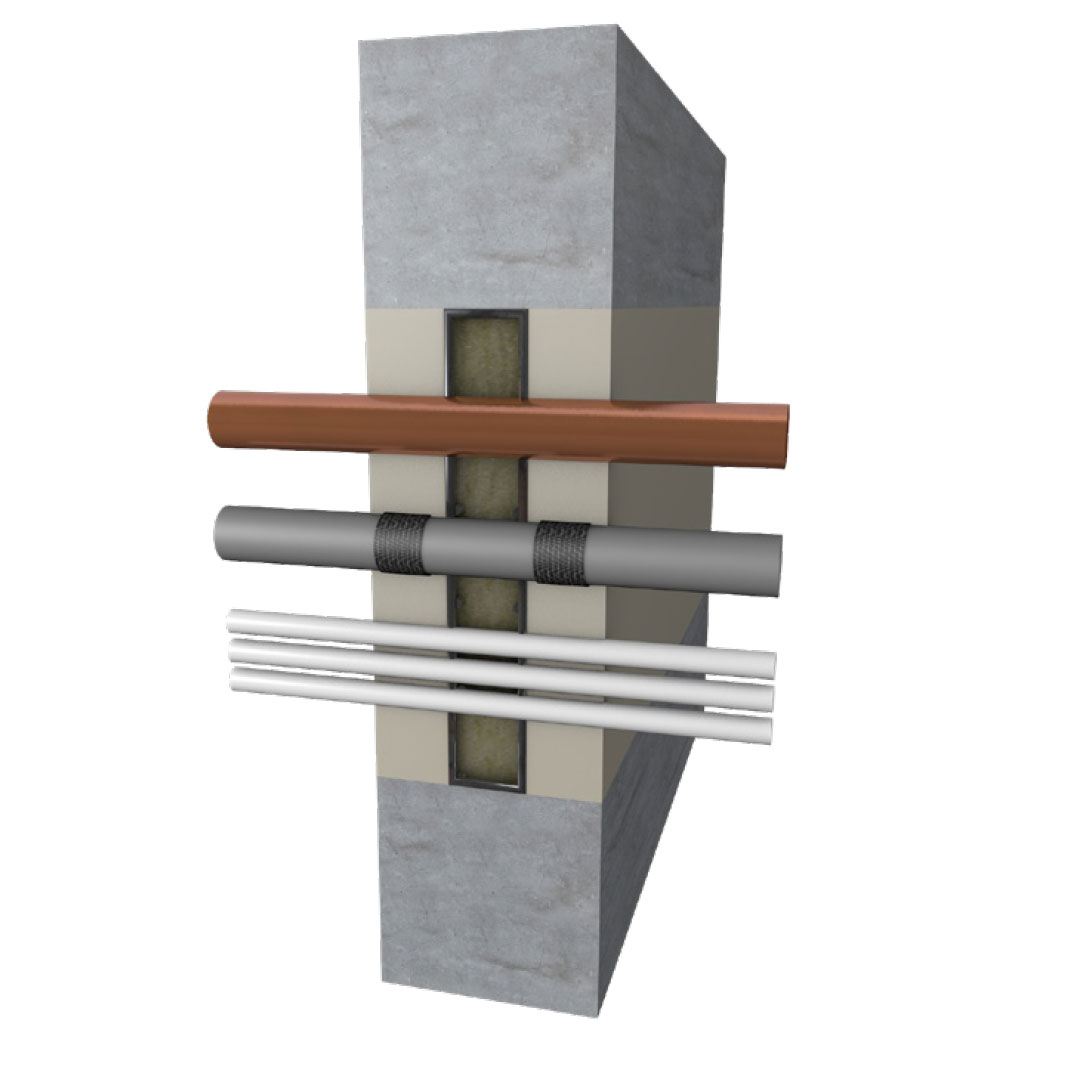

Astro HS FM Compound is a one-part synthetic mortar used to seal openings in walls and floors to prevent the passage of fire and smoke.

It is mixed with water to produce a trowelable or pourable mortar compound.

The seal created is high strength and non combustible, with a fire resistance to EN 1366-3 2009 at 100mm thickness and it can be made load bearing.

• Can be reactivated with water to extend the working time.
• Free of halogens, asbestos, fibres & silica and is non toxic.
• Suitable for indoor and outdoor use & can be over painted.
• Not affected by fungus, vermin, rodents and is environmentally friendly.
• Long life and ease of use with minimum waste.
• Acoustic insulation properties

Key Properties

Fire resistance:

120 mins @ 100mm thickness – BS476

EI 60 mins @ 100mm thickness – EN1366-3

E 120 mins I60 mins @ 100mm thickness – EN1366-3

Acoustic Isolation 46dB expected.

Tensile Strength 3N/mm2.

Load Bearing - up to 10.29 kN/mm2 (1000mm span).

Can be used in spans up to 2 metres wide.

Certifire



Application and Performance Data

Description

Off white free flowing powder

Density

1723 kg/m3 Dry / 1957 kg/m3 Wet

Fire Resistance - BS 467

120 mins @100mm thickness - BS476
E 120 mins, EI 60 @ 100mm thickness - EN1366-3

Non combustibility

in accordance with BS 476 part 4

Maximum Opening Span

2 meters

Load Bearing Span

1000mm Span - 10.29kN/mm2
1200mm Span - .57kN/mm2
1500mm Span - .86kN/mm2
2000mm Span - 5.15kN/mm2

Tensile Strength

3 N/mm2

Compressive Strength

20 N/mm2 @ 3 days
26 N/mm2 @ 7 days
30 N/mm2 @ 28 days

Thermal Conductivity

0.57 W/mK @ 50% - EN1745

Sound Reduction

46 dB reduction at 100mm (EXPECTED)

Properties & Specification

Colour

Off-white free flowing powder

BS 476 Fire Resistance

120 min

BS 476 Insulation

120 min

EN 1366-3 Fire Resistance

120 mins

EN 1366-3 Insulation

60 mins

Dry Density

1723 kg/m3

Wet Density

1957 kg/m3

Base Material

Synthetic

Weight

20kg

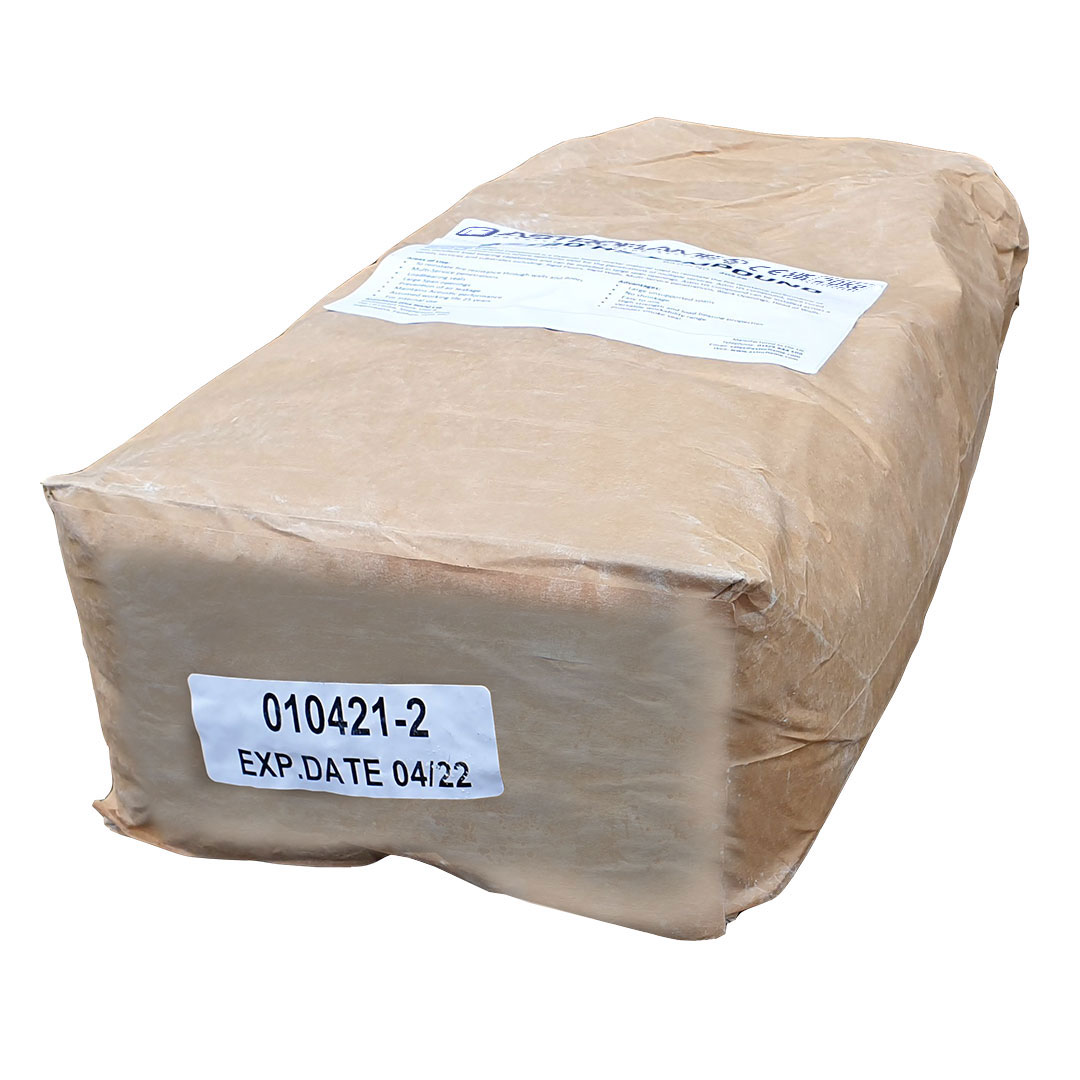

Shelf Life

12 months (stc)

Setting Time

20 mins (depending on ambient)

Packaging

Paper valve sack

Compressive strength

28 days and after - 30N/mm2

Tensile strength

3N/mm2

Applicatio temperature range

5 to 40°C

Temperature resistance

- 5 to 100°C

Load Bearing Capacity

1000 mm Span - 5.78kN/m2 @ 75mm thick

Load Bearing Capacity

1000 mm Span - 10.29kN/m2 @ 100mm thick

Load Bearing Capacity

1000 mm Span 23.15kN/m2 @ 150mm thick

Load Bearing Capacity

2000 mm Span 5.15kN/m2

Thermal Conductivity - EN1745

0.57W/mK at 50% / 0.65W/mK at 90°

Yield at 3:1 mortar/water ratio

Approx 16L per bag

Availability

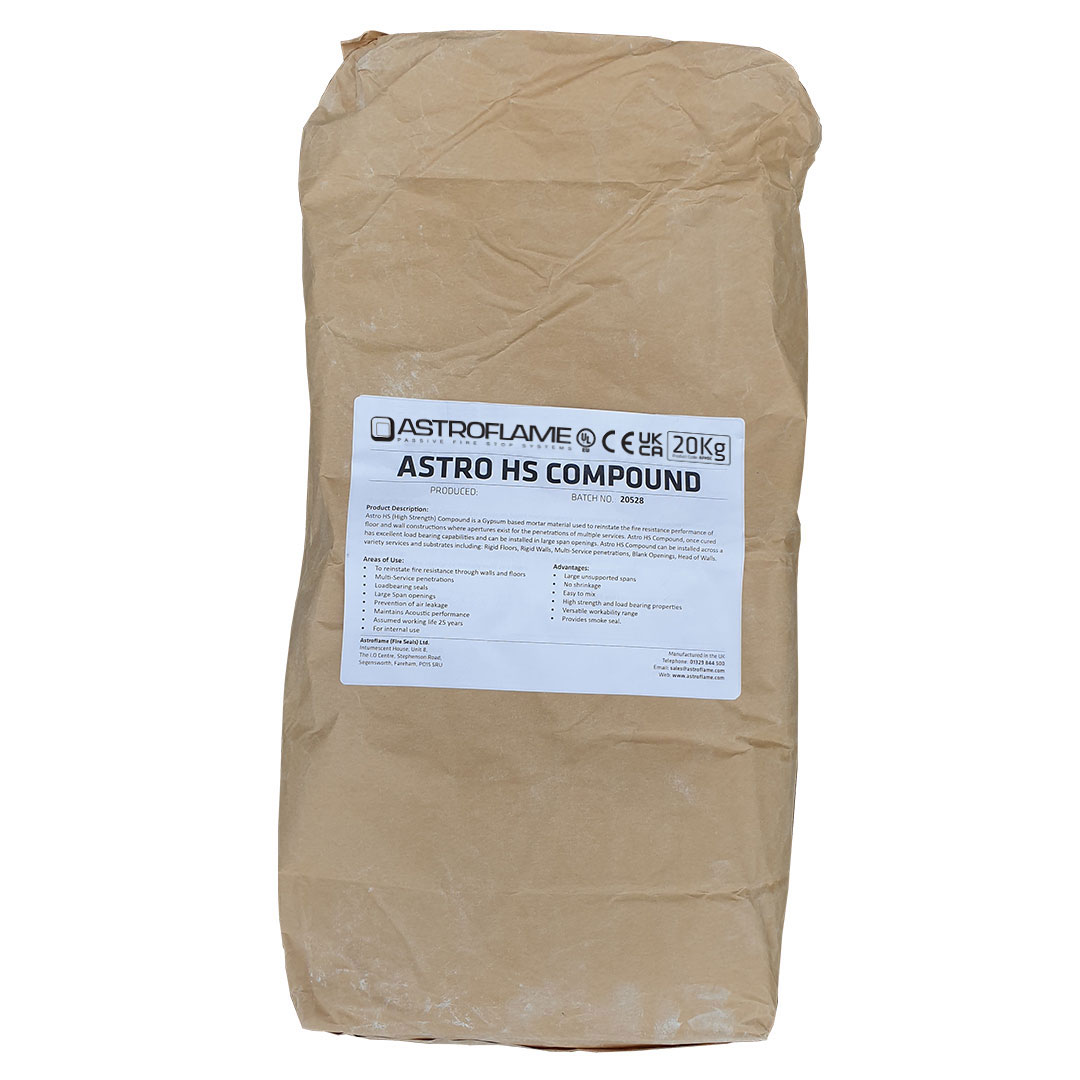

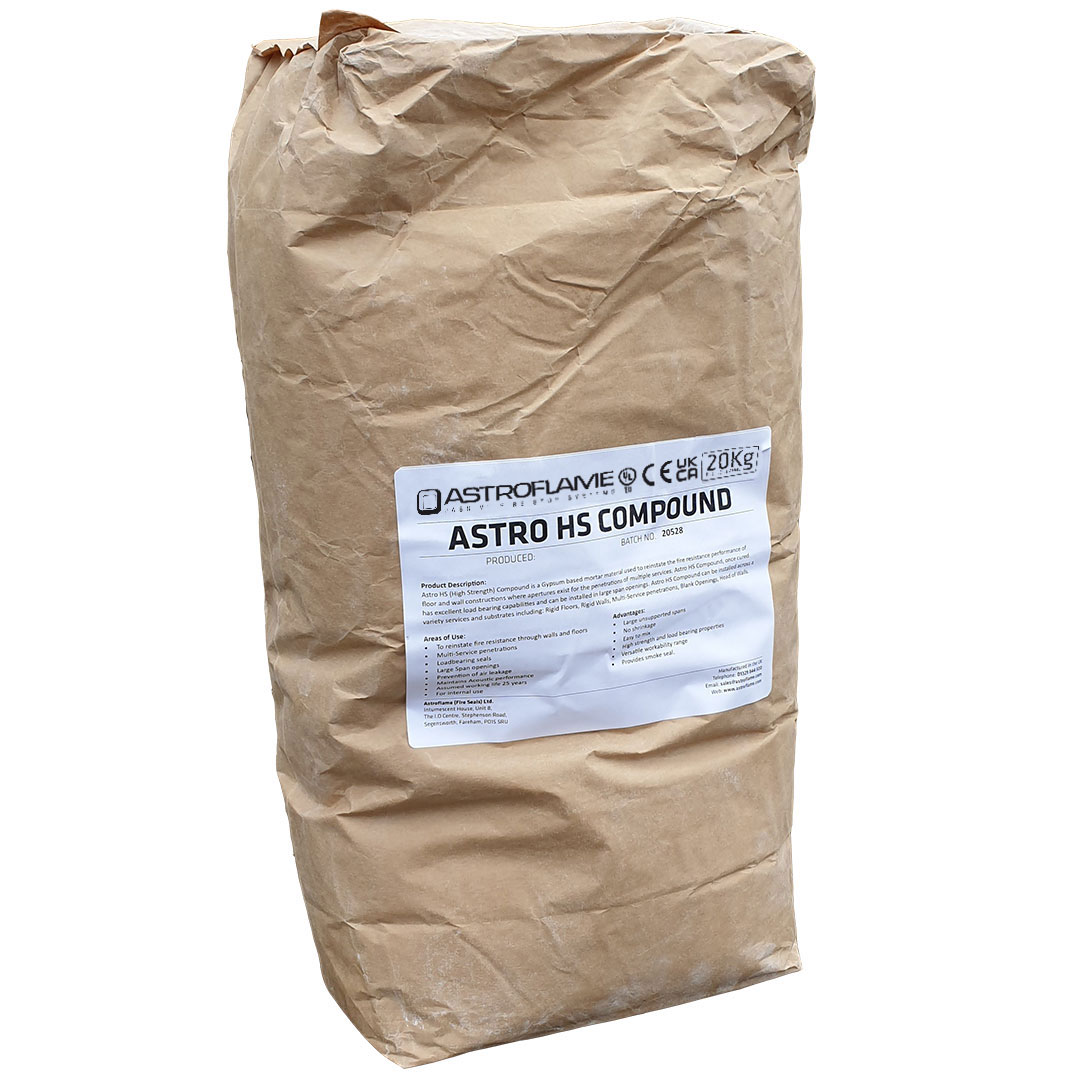

Astro HS FM Compound is supplied in 20kg bags.

Product Code

Product Description

Colour

Dimensions

AFFCHS

Astro HS FM Compound

Off-White

20kg Bag

To Order & Specify

Please contact us and quote the following information - Quantity / Product Code / Product Description / Weight> Typical wording - 10 / Astro Astro HS FM Compound/ AFFCHS

>> Tel: +44 1329 844 500 or >> Email: sales@astroflame.com

Fire Test or Assessment Reports

BS 476 Fire Resistance, up to 120 min
EN 1366-3 E 120 & EI 60

Installation

For further information on installation requirements please contact the technical team on: tel +44 1329 844 500 or email sales@astroflame.com

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on: tel +44 1329 844 500 or email sales@astroflame.com
